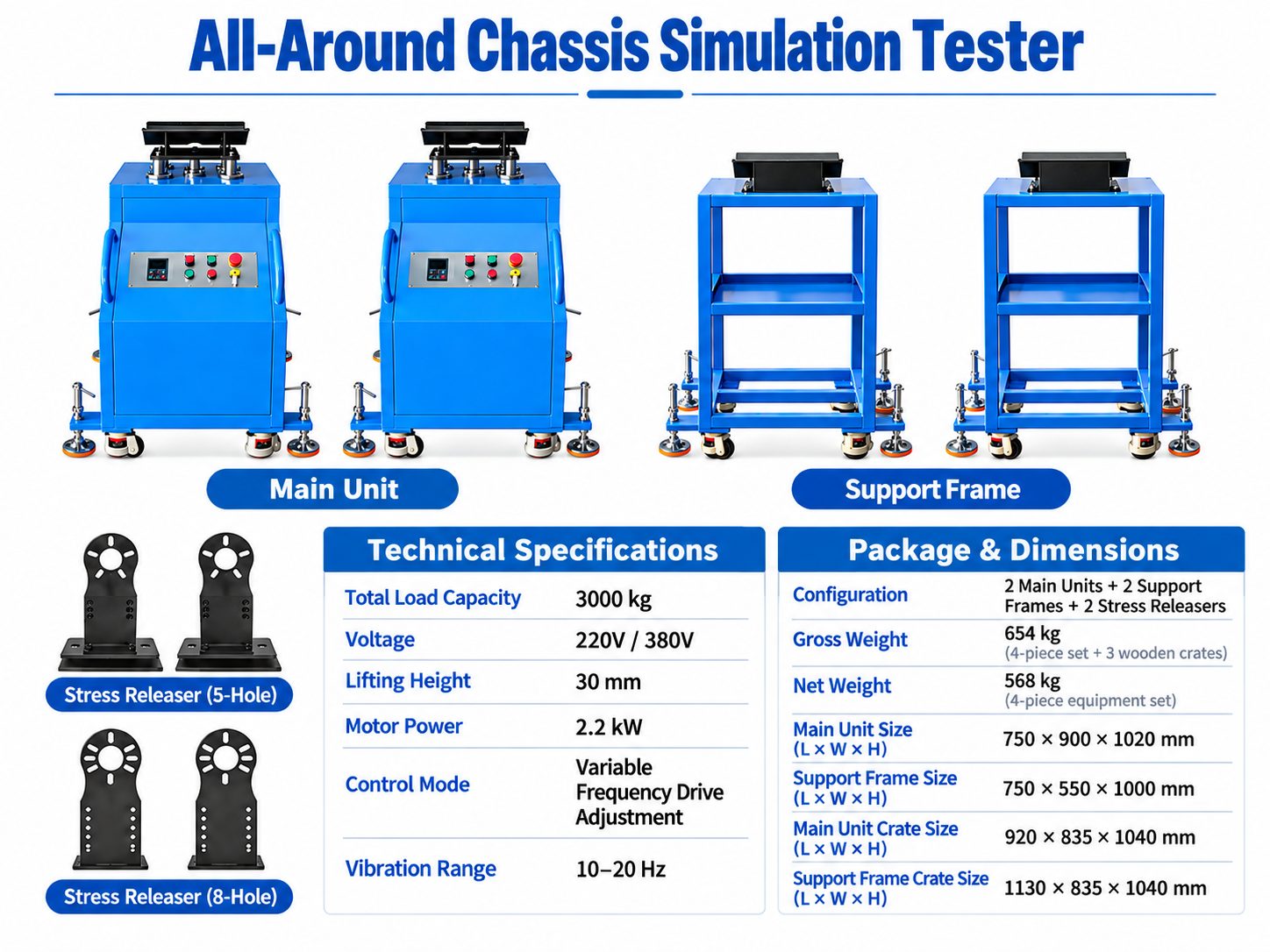

All-Around Chassis Simulation Tester / Automotive Suspension & Chassis Diagnostic Test Bench
The All-Around Chassis Simulation Tester is a heavy-duty diagnostic system engineered to accurately simulate road conditions and detect automotive chassis and suspension abnormal noises. Featuring a total load capacity of 3000 kg, dual voltage options (220V/380V), and a 2.2 kW motor, it employs variable frequency drive adjustment to generate a controlled vibration range of 10–20 Hz with a 30 mm lifting height. The comprehensive setup includes 2 main units, 2 support frames, and specialized 5-hole and 8-hole stress releasers. Designed for exceptional stability and precision diagnosis, it allows technicians to pinpoint elusive rattles, squeaks, and suspension wear efficiently, making it an indispensable diagnostic solution for professional automotive service centers.
Core specifications
- ✓ Core Specifications:Total Load Capacity: 3000 kg Voltage: 220V / 380V Motor Power & Control Mode: 2.2 kW motor with Variable Frequency Drive (VFD) adjustment Lifting Height & Vibration Range: 30 mm lifting height, 10–20 Hz vibration range Full Set Configuration: 2 Main Units + 2 Support Frames + 2 Stress Releasers (5-hole & 8-hole) Equipment Dimensions (L×W×H):Main Unit: 750 × 900 × 1020 mm Support Frame: 750 × 550 × 1000 mm Weights & Packaging: Net weight 568 kg (4-piece set); Gross weight 654 kg (shipped in 3 wooden crates) Key Selling Points:Heavy-Duty 3000 kg Load Capacity: Built with reinforced structural steel to support passenger vehicles, SUVs, and light commercial vehicles safely during full vibration testing. VFD Controlled Road Simulation: Precise 10–20 Hz frequency adjustment enables dynamic recreation of diverse driving vibrations, allowing accurate abnormal noise detection in real time. Comprehensive Multi-Hole Fixtures: Includes dedicated 5-hole and 8-hole stress releasers along with dual mobile support frames to provide maximum stability and universal hub/chassis fitment. Mobile & Secure Workshop Integration: Outfitted with heavy-duty caster wheels and leveling anchor feet for smooth maneuverability and rock-solid anchoring during active diagnostic cycles.
- MOQ: 50 units
- Lead time: 15---25 days
