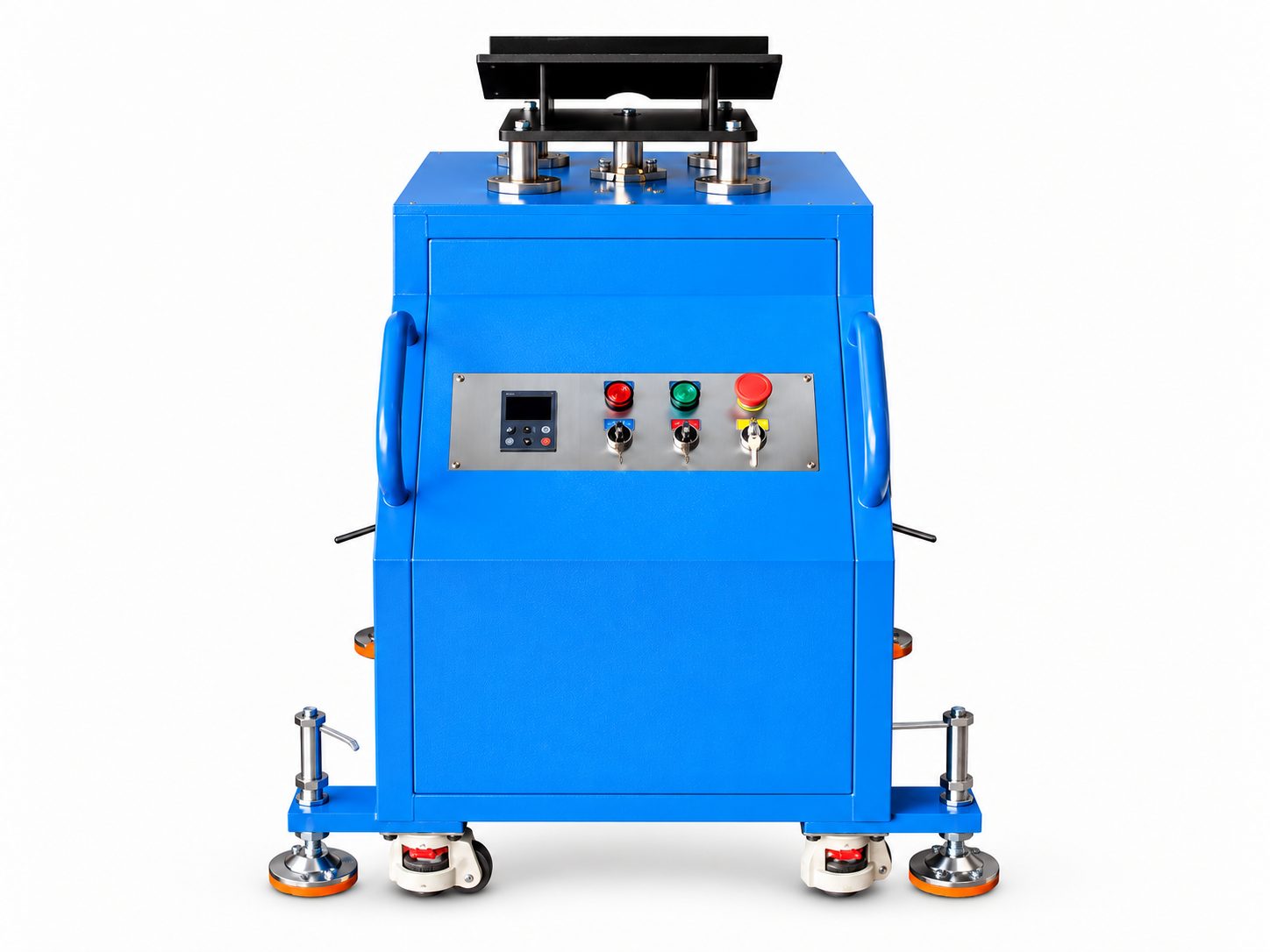

Chassis Simulation Tester Main Unit / Automotive Chassis Vibration Test Bench
This Chassis Simulation Tester Main Unit is an advanced diagnostic machine engineered to simulate real-world road vibrations for pinpointing automotive chassis and suspension abnormal noises. Powered by a robust 2.2 kW motor with 220V/380V input, it utilizes a Variable Frequency Drive (VFD) system to deliver an adjustable vibration frequency of 10–20 Hz with a 30 mm lifting stroke. The unit measures 750 × 900 × 1020 mm (wooden crate size: 920 × 835 × 1040 mm) and features a central control panel with digital display, key switches, and an emergency stop for maximum operational safety. Equipped with heavy-duty casters and leveling anchor feet, it delivers both effortless mobility and rock-solid stability during high-intensity workshop diagnostics.
Core specifications
- ✓ Core Specifications:
- ✓ Equipment Type: Main vibration simulation testing unit.
- ✓ Voltage & Power: 220V / 380V; 2.2 kW heavy-duty drive motor.
- ✓ Control Mode: Variable Frequency Drive (VFD) adjustment.
- ✓ Vibration Range & Stroke: 10–20 Hz dynamic vibration frequency; 30 mm lifting height.
- ✓ Dimensions (L×W×H): 750 × 900 × 1020 mm (Crate size: 920 × 835 × 1040 mm).
- ✓ Mobility & Anchoring: Integrated dual-action swivel casters with threaded leveling stabilizing feet.
- ✓ Key Selling Points:
- ✓ Precise Road Vibration Simulation: VFD-driven 10–20 Hz dynamic vibration accurately reproduces driving conditions to expose hidden chassis rattles and suspension wear.
- ✓ Robust 2.2 kW Motor Power: Delivers continuous high-torque performance to safely handle high-frequency road testing on diverse vehicle platforms.
- ✓ Integrated Safety Control Panel: Equipped with a clear digital controller, tactile key switches, and an instant emergency stop button for secure, controlled diagnostics.
- ✓ Mobile Yet Ultra-Stable: Heavy-duty industrial caster wheels allow quick positioning across shop bays, while the adjustable leveling pads lock the unit securely in place during testing.
- MOQ: 50 units
- Lead time: 15–25 days
